Description

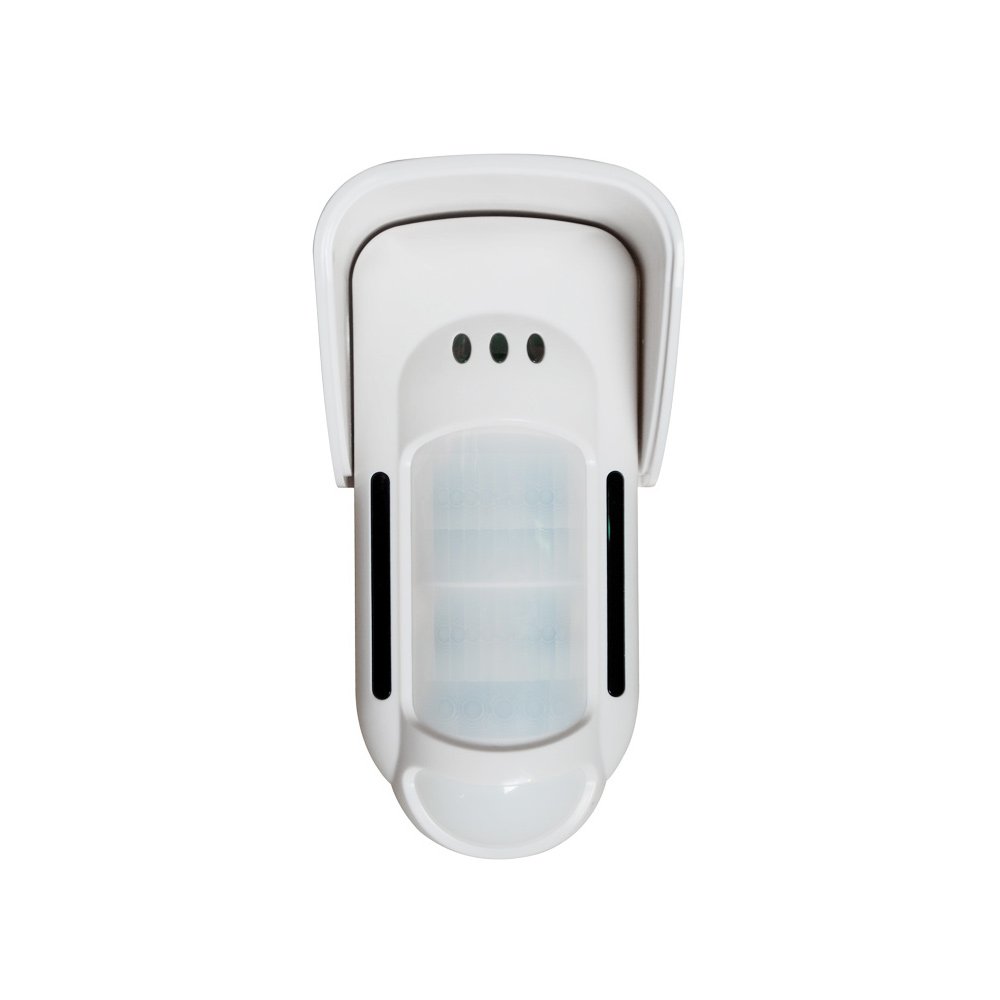

The FT-89R Outdoor Wireless Microwave Four Detector Infrared Detector is an advanced and versatile security device designed to perform exceptionally in both indoor and outdoor settings. This model builds on the capabilities of the previous versions by incorporating wireless technology, enhancing its installation flexibility and range. Here is a detailed analysis of its features, specifications, and potential applications:
Key Product Features:
- Robust Environmental Tolerance: Rated IP67 for water and dust resistance, making it suitable for any weather conditions including heavy rain and fog.
- Advanced Detection Technologies: Utilizes a combination of four-element passive infrared and microwave shake recognition technology, ensuring highly accurate and responsive motion detection.
- Intelligent Detection Algorithm: Equipped with smart algorithms for genuine object recognition, intelligent judgment, and anti-pet recognition to minimize false alarms.
- Automatic Pulse Regulation: Automatically adjusts to complex outdoor environments, maintaining reliable detection even in variable conditions.
- Fine Differential Fresnel Lenses: Enhances the accuracy of the infrared sensors, allowing for more precise detection movements.
- Dynamic Time Segmentation: Utilizes random dynamic segmentation technology to improve detection speed and accuracy.
- Flexible Installation Options: Features a large range rotatable design that allows for adjustable detection angles, catering to specific security needs.
- Enhanced Coverage: Includes a lower window that expands the detection range, effectively reducing blind spots.
- Microwave Anti-Collision: Incorporates technology to prevent interference between adjacent detectors, ideal for setups where multiple units are installed closely.
- Customizable with Spare Lenses: Comes with a spare Fresnel lens that can be selected based on specific detection requirements, providing customization flexibility.
Specification Parameters:
- Product Model: F-89R Indoor and Outdoor Triple Detector
- Detection Method: Combines two sets of quaternary infrared with a 10.525GHz microwave for comprehensive coverage.
- Wireless Connectivity: Operates within a wireless range of up to 100 meters in open areas, with a frequency of 433MHz and supports ASK/FSK encoding.
- Power Requirements: Powered by a 9-16VDC input.
- Current Consumption: 18mA (static) and 50mA (alarm).
- Detection Range: Selectable distances of 9m, 12m, and 18m.
- Detection Angles: Available in 30°, 90°, and 120°.
- Installation Height: Recommended between 1.8m and 2.4m.
- Resistance to Interference: Exceptionally resistant to white light (30000LUX) and electromagnetic interference (>30V/m from 30MHz to 1GHz).
- Operational Temperature: Effective between -20°C and +55°C.
- Mounting Bracket: Features a horizontally 90° and vertically 60° rotatable bracket.
- Dimensions: Measures 309mm x 113mm x 187mm, including the bracket.
Applications:
- Residential Security: Perfect for securing outdoor areas of homes, including gardens and driveways, especially in environments requiring wireless solutions.
- Commercial Properties: Suitable for monitoring external areas of commercial buildings, parking lots, and entryways where wiring may be challenging.
- Industrial Facilities: Ideal for perimeter security in large industrial sites where flexibility in detector placement is necessary.
- High-Security Locations: Applicable in areas requiring high-security measures like government buildings, military bases, and research facilities due to its high accuracy and reliability.
The FT-89R provides a comprehensive security solution that combines traditional detection methods with modern wireless technology, offering flexibility, reliability, and ease of installation suitable for a wide range of environments and applications.
