Description

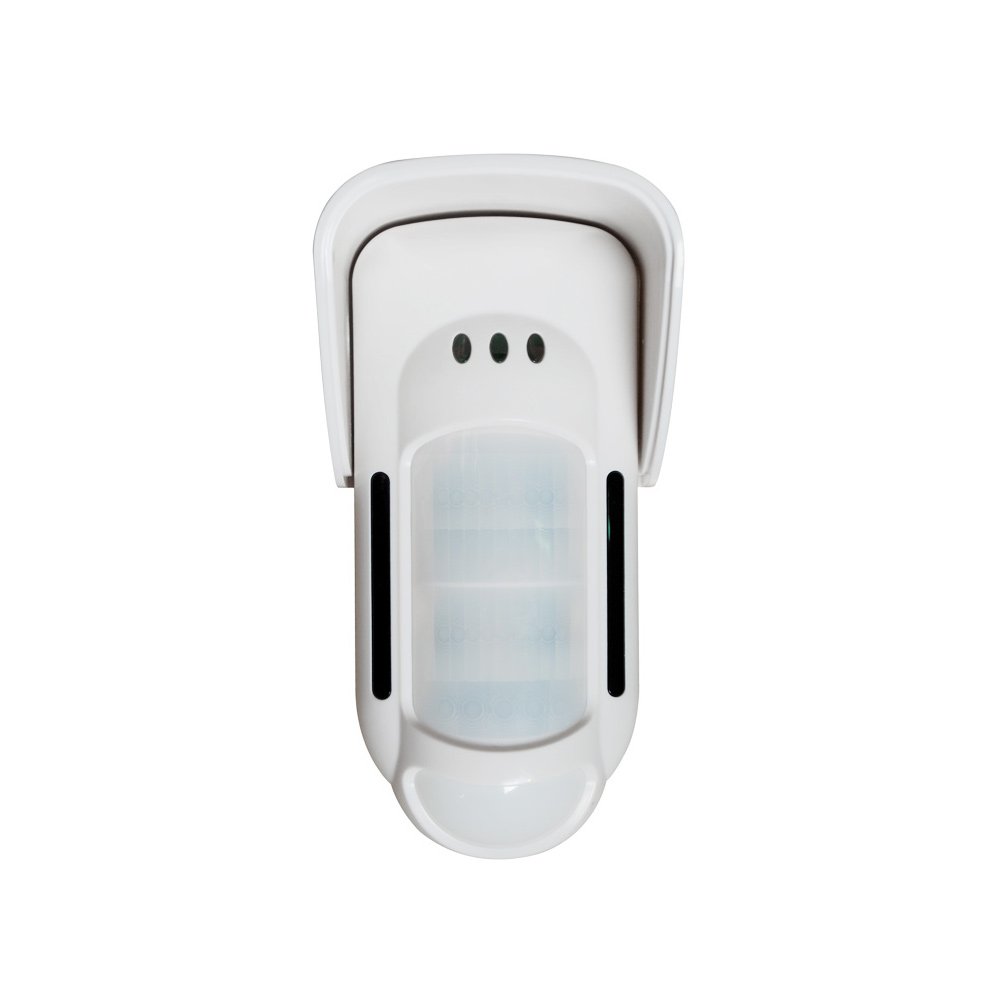

The FT89 Outdoor Wired Four Detector Infrared Detector is an advanced security solution designed for versatility and efficiency in diverse environmental conditions. Here’s a detailed examination of its features, specifications, and potential uses, highlighting its adaptability and effectiveness for security needs.
Key Product Features:
- High Durability: Equipped with a robust waterproof rating of IP67, making it suitable for both indoor and outdoor use under severe weather conditions including rain and fog.
- Environmental Adaptability: The detector is resistant to white light and can adapt to various environmental conditions, ensuring reliable performance without false alarms.
- Advanced Detection Technology: Employs a combination of four-element passive infrared and microwave shake recognition technology, providing accurate and sensitive motion detection.
- Intelligent Algorithm: Features an intelligent algorithm that supports real object recognition and includes anti-pet recognition, reducing false triggers caused by small animals.
- Automatic Pulse Regulation: Adjusts to complex outdoor environments automatically, maintaining stability and reliability in detection capabilities.
- Random Dynamic Time Segmentation Technology: Enhances the accuracy and speed of detection by dynamically adjusting the detection intervals.
- Adjustable Detection Range: Offers a large range rotation design that allows the angle of detection to be customized, enhancing the scope of coverage.
- Expanded Detection Coverage: Includes a lower window to broaden the detection range and effectively eliminate blind spots.
- Microwave Anti-Collision Technology: Ensures that multiple detectors can operate in proximity without interference from each other.
- Spare Fresnel Lens: Includes a spare lens that can be selected based on specific detection requirements, allowing for customization based on situational needs.
Specification Parameters:
- Product Model: F-89 Indoor and Outdoor Triple Detector
- Detection Method: Utilizes two sets of quaternary infrared technology combined with a 10.525GHz microwave.
- Power Consumption: Functions on a 9-16VDC power input with a static current of 18mA and an alarm current of 50mA.
- Detection Distances: Offers adjustable detection distances of 9m, 12m, and 18m, catering to different spatial requirements.
- Detection Angles: Provides variable angles of 30°, 90°, and 120°, allowing for tailored security setups.
- Installation Height: Recommended installation height is between 1.8m and 2.4m.
- Alarm Output Options: Can be configured as normally open (NO) or normally closed (NC).
- Resistance Capabilities: Exceptional resistance to white light interference (30000LUX) and electromagnetic interference (>30V/m from 30MHz to 1GHz).
- Operational Temperature Range: Functions effectively within a temperature range of -20°C to +55°C.
- Installation Bracket: Features a rotatable bracket with horizontal 90° and vertical 60° adjustments.
- Dimensions: Measures 309mm x 113mm x 187mm (including bracket).
Applications:
- Residential Security: Ideal for monitoring large outdoor residential areas such as yards and gardens.
- Commercial Security: Suitable for deployment around commercial properties like retail spaces, office buildings, and parking lots.
- Industrial Security: Can be used to secure perimeters of industrial sites and warehouses.
- High-Security Areas: Appropriate for use in high-security installations such as data centers, military facilities, and research institutions.
The FT89 detector combines high-tech features and robust design, making it a reliable choice for extensive and scalable security installations. Its versatility in detection range and angle customization along with environmental resilience ensures comprehensive security coverage under varying conditions.
