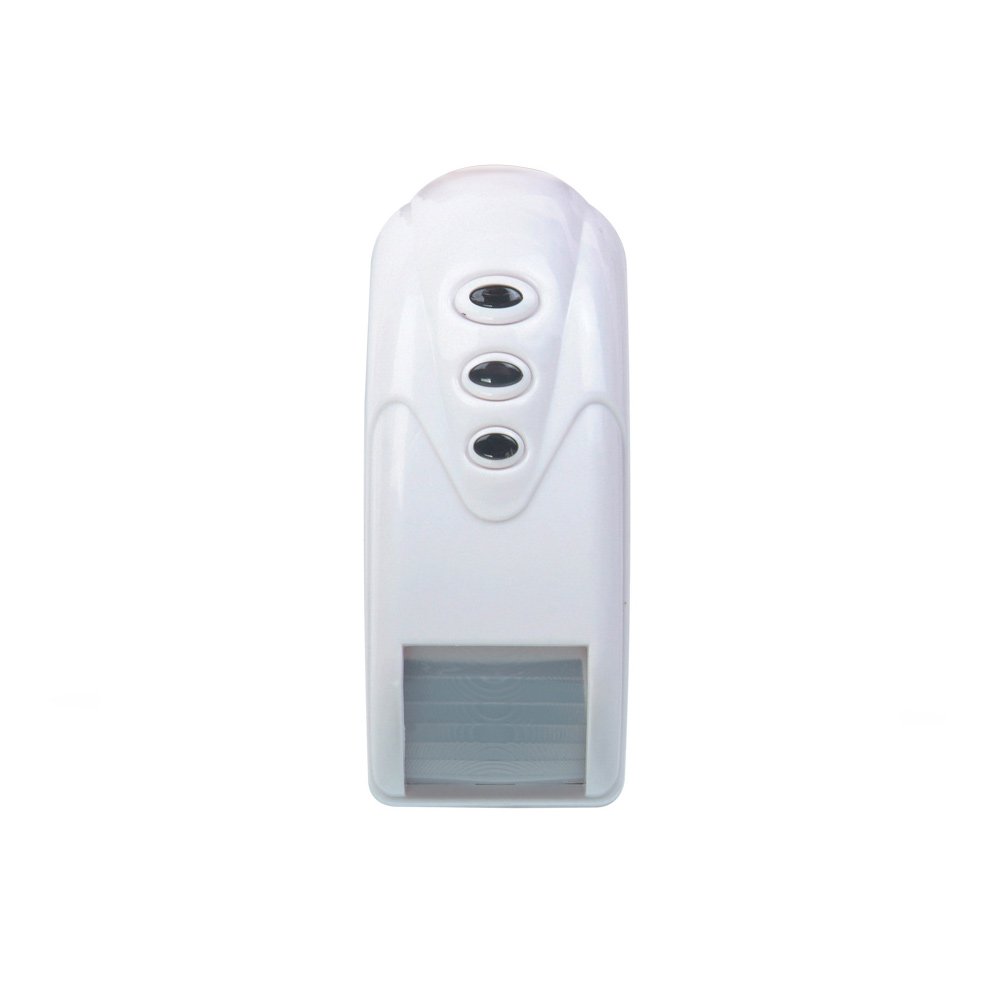

Miniature Curtain-Style Dual Infrared Detector

Miniature Curtain-Style Dual Infrared Detector

The professional curtain-type passive infrared (PIR) mobile probe is designed for comprehensive protection of doors, windows, and balconies. Its versatile design allows for both wall-mounted and ceiling-mounted installations, making it adaptable to various security needs. The small and elegant exterior design ensures it can be discreetly installed in any position without compromising the aesthetics of the space. This type of sensor is ideal for detecting motion in specific areas, providing an additional layer of security to homes or businesses.

Product Consultation
Contact Us

Description

The MX-462 Indoor Directional Curtain Infrared Detector is a high-performance security device designed to detect motion in a defined area, making it especially suitable for installation near doors, windows, and balconies. With its sleek design and compact size, it can be seamlessly integrated into various indoor settings without disrupting the aesthetics.

Key Features:

  • Flame Retardant Shell: Offers safety and durability with a stylish and compact design that complements modern interiors.
  • Directional Recognition: Allows for the customization of the curtain’s directional sensitivity, tailored to the specific needs of the installation site.
  • Environmental Adaptability: Features like anti-strong light interference, environmental recognition, and temperature compensation enhance reliability under varying environmental conditions.
  • Security Enhancements: Includes an anti-tamper function and a 24-hour self-check function to ensure continuous and reliable operation.
  • Advanced Sensing Technology: Utilizes an energy accumulation operation chip and dynamic time division logic chip to improve sensitivity and includes an anti-pet function to minimize false alarms.
  • Flexible Installation: Can be mounted on walls or ceilings and programmed for different installation locations. It offers both vertical and horizontal sensing options.
  • High Sensitivity: Ensures precise motion detection within its operational range.

Technical Specifications:

  • Product Model: MX-462
  • Detection Method: Four element infrared
  • Static Current: 8mA
  • Alarm Current: 25mA
  • Detection Distance: Up to 8 meters
  • Detection Angle: 15°
  • Power Input: 9-16VDC
  • Installation Height: Recommended between 1.8m and 2.4m
  • Alarm Output: Options for normally open (NO) or normally closed (NC)
  • Alarm Direction: Choice between single curtain and directional curtain
  • Anti-visible Light: More than 9000LUX
  • Anti Electromagnetic Interference: Over 30V/m (from 10MHz to 1GHz)
  • Working Temperature: Ranges from -10℃ to +50℃
  • Relative Humidity: Tolerates 5%-95% RH
  • Dimensions: 75 x 50 x 62 mm (excluding bracket)

Ideal Installations:

  • Residential: Protect entrances, windows, and balconies in homes.
  • Commercial: Secure doors and windows in office settings, shops, and other commercial buildings.
  • Sensitive Areas: Ideal for places where precise and directional detection is crucial, such as galleries or document rooms.

Installation Tips:

  • Choose the Right Height: Install the detector within the recommended height range to maximize its efficiency.
  • Avoid Interference: Place the detector away from heat sources and areas with frequent movement that are not of security concern.
  • Test After Installation: Ensure the system is properly calibrated and functioning as expected by conducting walk tests and adjusting settings as necessary.

This detector is particularly valuable for settings where precision and customization in motion detection are paramount, ensuring enhanced security with minimal false alarms. Its versatile installation and programmability make it a top choice for both residential and commercial security systems.
