Cordless Smoke Detector

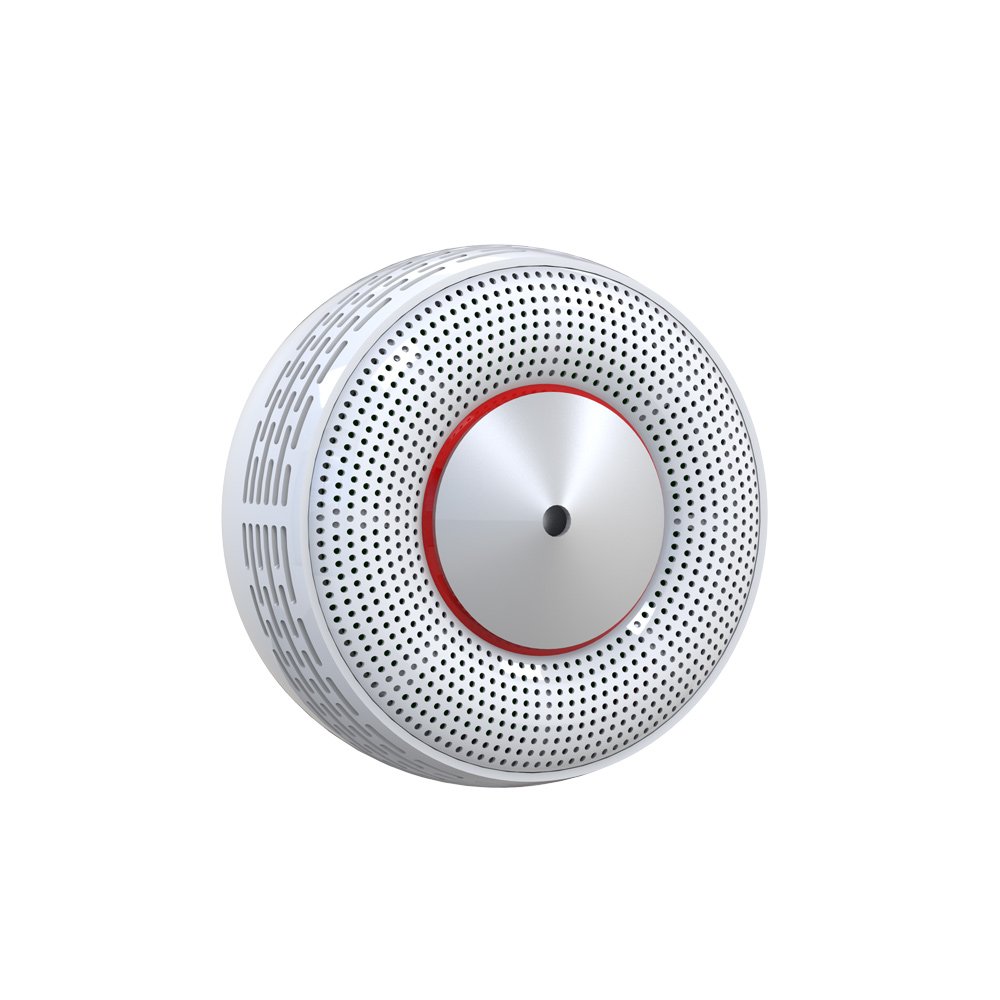

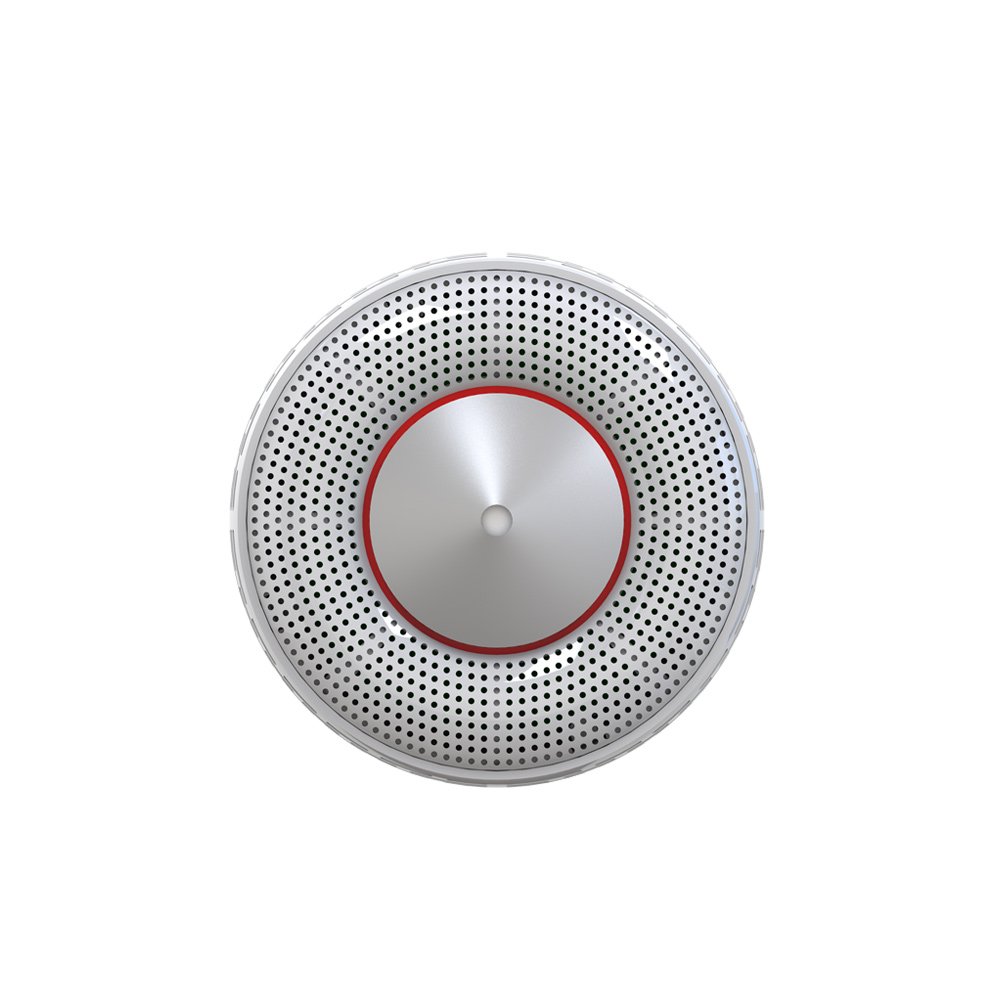

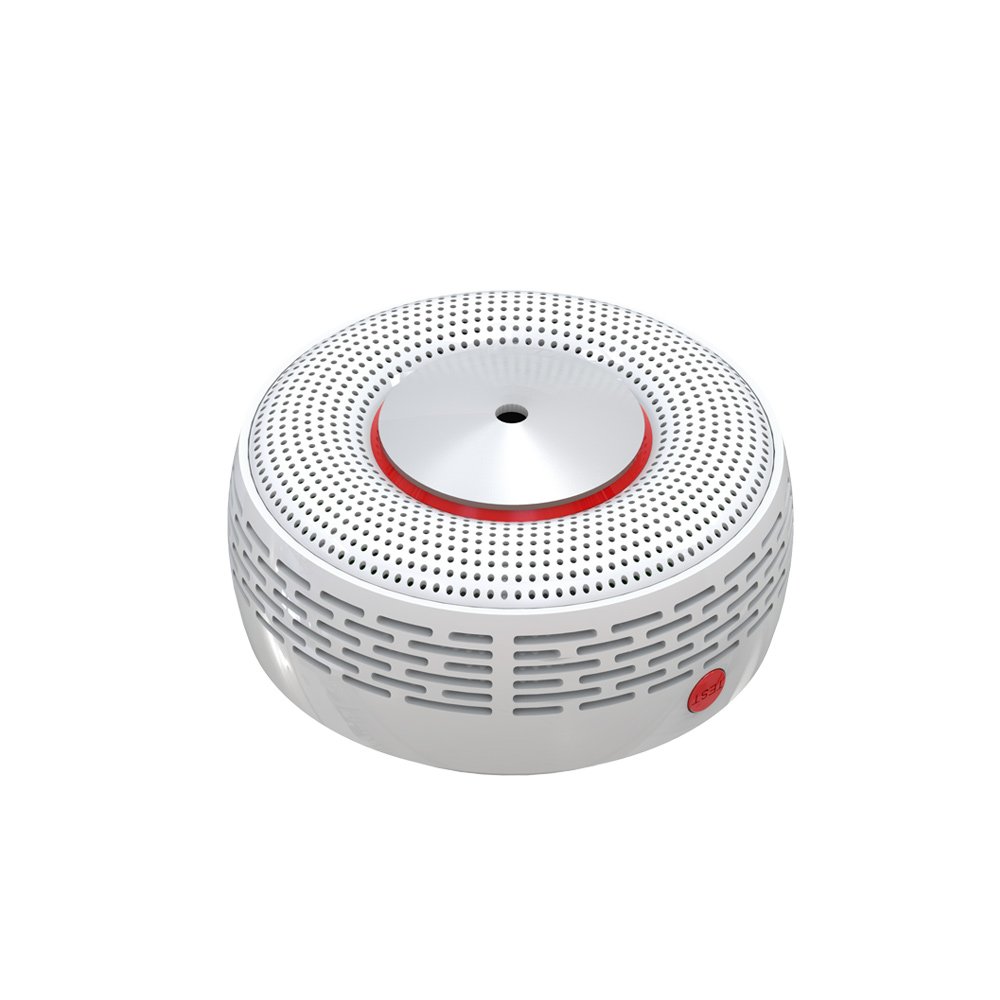

The MD2106R Wireless Smoke Detector features a harmonious and rounded design, equipped with a 360-degree gas convection window for faster smoke detection. Its dual emission maze structure enables bidirectional scattering detection, enhancing the accuracy and reliability of smoke sensing. The wireless capability allows for flexible and convenient installation, making it an ideal choice for enhancing fire safety.

Product Consultation
Contact Us

Description

The MD-2106R Wireless Smoke Detector: Optimal Safety and Advanced Technology

Introducing the MD-2106R Wireless Smoke Detector, which blends cutting-edge technology with user-friendly features to deliver reliable and efficient smoke detection. Certified to GB20517-2006 standards, this device is designed to enhance safety in diverse environments such as small businesses, homes, and industrial settings.

Highlighted Features of MD-2106R Wireless Smoke Detector:

  1. Aesthetic Design: Features a circular curved top that not only provides a visually appealing look but also aids in the effective gathering and detection of smoke.
  2. 360° Smoke Detection: Equipped with a hollow smoke collection window that allows for rapid smoke perception due to enhanced gas convection.
  3. Dual Emission Detection Maze: Utilizes a sophisticated dual emission maze for bidirectional scattering detection of smoke, ensuring thorough surveillance.
  4. Efficient Alert System: Generates a loud 80-decibel alarm combined with a visual signal to keep you constantly informed in case of smoke detection.
  5. Advanced Circuitry: Includes a unique circuit design with an environment learning self-correction function that minimizes false alarms.
  6. Manual and Digital Pairing Options: Easily pairs with control panels either through intelligent trigger pairing or manual input via a QR code on the device.
  7. Robust Interference Resistance: Designed to withstand radio frequency electromagnetic interference, maintaining reliability in various settings.
  8. Extended Wireless Range: Offers a substantial wireless transmission distance of up to 150 meters in open areas.
  9. Low Energy Consumption: Powered by two built-in CR123A lithium batteries, featuring a low power design that promotes longer battery life of about 3-5 years.
  10. Comprehensive Monitoring: Includes multiple indicators for power status, alarm output, and device functionality to ensure optimal operation.

Technical Specifications:

  • Model: MD-2106R
  • Supply Voltage: DC 3V
  • Alarm and Static Current: <100mA (alarm), <10μA (static)
  • Modulation Method: ASK
  • Operating Frequency: 433/868MHz (optional)
  • Wireless Transmission Distance: ≤ 100 meters
  • Buzzer Volume: >85dB at 3 meters
  • Battery Specifications: 2 * CR123A lithium battery, 1400mAh each
  • Operating Environment: Temperature -5 ℃ to 50 ℃; Humidity 10% to 90%
  • Size: φ86*45.7mm

Ideal for Various Applications:

Whether it’s a residential setting, a small business, or a factory, the MD-2106R Wireless Smoke Detector is designed to provide dependable smoke detection, ensuring safety and peace of mind.

Enhance your fire safety protocol with the MD-2106R Wireless Smoke Detector, where advanced technology meets efficiency and reliability.
